Response Time

CHITEK AHF features a full response time of less than 50 microseconds (<50μs), enabling real-time harmonic compensation that responds instantly to dynamic load changes.

This ultra-fast response ensures that even rapidly fluctuating loads such as welding machines, elevators, and variable frequency drives are effectively compensated without delay, preventing harmonic buildup that could damage sensitive equipment.

Parallel Operation

Yes, CHITEK AHF units are designed for parallel operation. Up to 10 units can be paralleled without any communication cables, using a proprietary master-slave control algorithm.

Key benefits of parallel operation:

• Capacity expansion from 30A to 3000A+
• N+1 redundancy for critical applications
• Automatic load sharing with droop control
• Hot-swappable modules for maintenance without downtime

Parallel systems can be configured in less than 5 minutes through the intuitive front panel interface.

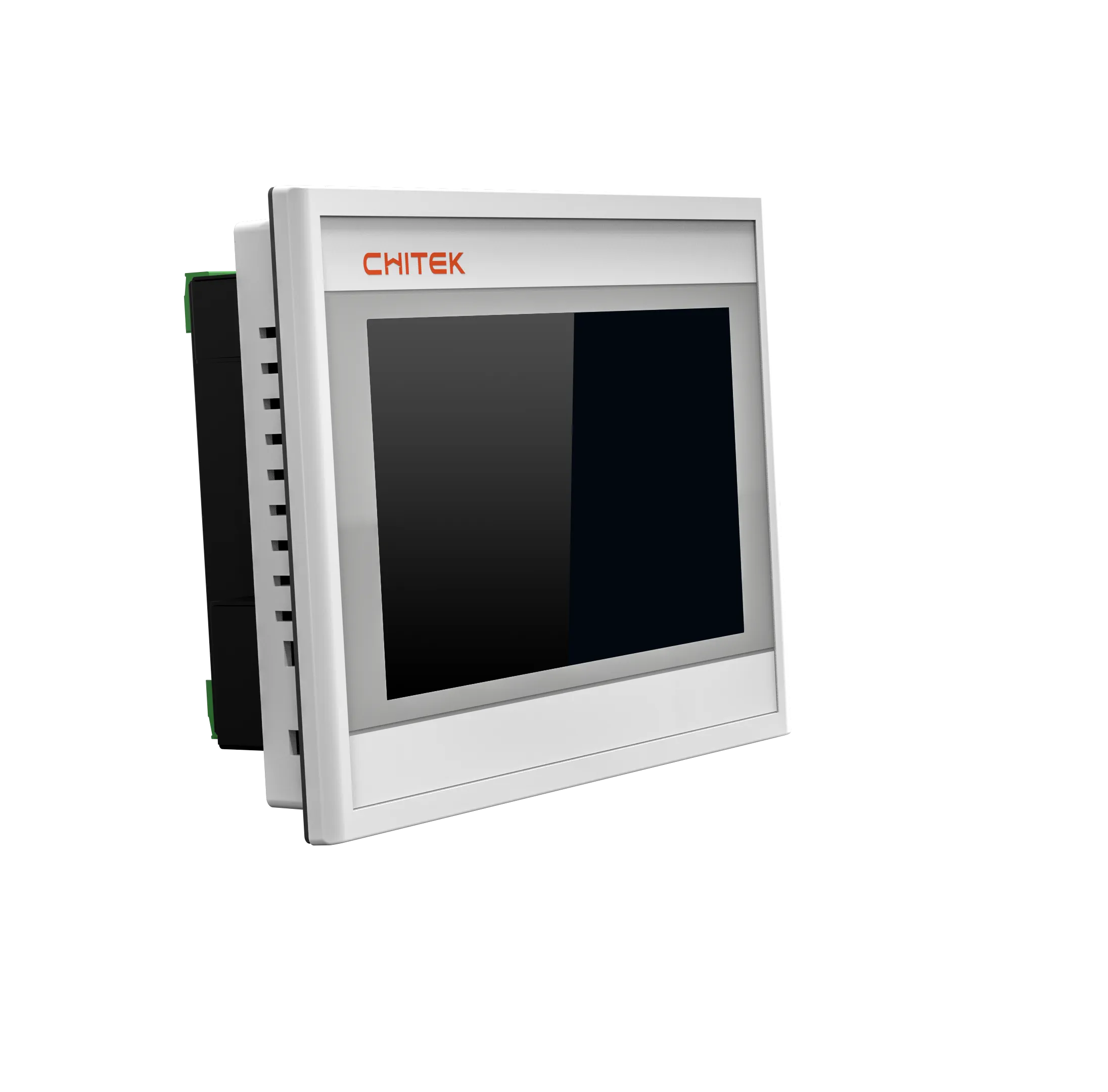

Communication Protocols

CHITEK AHF supports the following communication protocols for remote monitoring and control:

• RS485 / Modbus RTU — standard on all models
• Ethernet / Modbus TCP — optional interface module
• Profibus DP — optional for industrial automation integration
• Dry contact I/O — for simple start/stop and alarm signaling

All communication parameters (baud rate, parity, slave address) are configurable via the front panel keypad and display. CHITEK also provides a free PC-based monitoring software for data logging and trend analysis.

Lifespan and Maintenance

CHITEK AHF has a design life exceeding 15 years under normal operating conditions (ambient below 40°C, nominal load). Regular preventive maintenance is recommended every 12 months to ensure optimal performance.

• DC bus capacitor replacement: every 8-10 years (recommended)
• Cooling fan replacement: every 5-7 years (based on operating hours)
• Air filter cleaning: every 3-6 months (dusty environments)
• Firmware updates: available via CHITEK PC software tool

All CHITEK AHF products come with a standard 2-year warranty, with extended warranty options available up to 5 years.

Transformer Requirements

No, the CHITEK AHF does not require a dedicated isolation transformer. It connects directly to the low-voltage bus (380V-480V, 50/60Hz) through the existing circuit breaker or fused disconnect.

However, proper current transformer (CT) installation is critical for correct operation:

• CTs must be installed on the mains side (grid source) of the load
• CT ratio should be selected so the secondary current is 1A or 5A at full load
• CT accuracy class 0.5 or better recommended for optimal performance
• Standard CT wiring distance up to 100 meters with proper shielding

Harsh Environment Operation

CHITEK AHF is designed for reliable operation in demanding industrial environments:

• Operating temperature: 0°C to +50°C (standard), with automatic derating above 40°C
• Storage temperature: -25°C to +70°C
• Humidity: 0-95% non-condensing
• Ingress protection: IP20 standard, IP31 optional (NEMA 1 equivalent)
• Altitude: up to 2000m without derating, up to 4000m with derating

For extreme environments (high dust, corrosive gases, outdoor), CHITEK offers custom enclosure options including forced ventilation, heat exchangers, and stainless steel construction.

Certifications and Compliance

CHITEK AHF products are fully certified and comply with major international standards:

• CE (LVD + EMC) — compliance with EU directives for low voltage and electromagnetic compatibility
• UL/cUL 508 — listed for industrial control equipment (optional)
• IEC 61642 — harmonic filter application standard
• IEC 61439-1/2 — low-voltage switchgear and controlgear assemblies
• IEEE 519-2022 — recommended harmonic limits compliance
• ISO 9001:2015 — quality management system (manufacturing facility)

Custom certification packages are available for specific regional or project requirements.

Commissioning and Configuration

CHITEK AHF is designed for quick and intuitive commissioning. The standard setup process takes less than 15 minutes and involves three simple steps:

1. Auto-tuning: The AHF automatically detects line impedance and CT configuration with the press of a button
2. Harmonic selection: Choose from pre-configured harmonic profiles or customize individual harmonic orders (2nd-50th)
3. Verification: Built-in waveform display and harmonic spectrum analyzer confirm correct operation

For advanced configurations, CHITEK provides a free PC-based software tool for parameter backup/restore, data logging, and remote monitoring setup. Multi-unit parallel systems can be configured in under 5 minutes through the intuitive front panel interface without any external tools.
