IP65 Active Harmonic Filter — Weatherproof Outdoor Series

Tags IP65 active harmonic filter, weatherproof AHF module, IP65 active power filter APF, IP65 harmonic filter cabinet, outdoor active harmonic filter, waterproof APF module

Function: Harmonic Mitigation, Reactive Compensation, Imbalance Phase Balancing

Rated Voltage: 208/400/480 VAC

Power Capacity: 50/75/100/150/200A single module (unlimited for parallel)

Efficiency: ≥ 97%

Filter Performance: up to 97%

Nominal Frequency: 50/60HZ

Connection Type: 3 Phase 3 Wire / 3 Phase 4 Wire

Installation: Wall mounted/Rack mounted/Cabinet

Warranty: Standard 2 years/negotiable

Configure your sku

Pick voltage, protection rate, capacity, wiring and installation — the selector fills in the matching part number.

Rated Voltage

Protection Rate

Power Capacity

Wiring

Installation

Estimated 1300$(EXW)

Inquire now →
CHITEK IP65 Active Harmonic Filter

Product

IP65 Active Harmonic Filter

Voltage level

208/400/480 VAC

Description

CHITEK IP65 Active Harmonic Filter is an advanced and comprehensive power quality solution for power grids, which adopts an advanced three-level inverter topology to deliver fast and efficient real time harmonic mitigation. This CHITEK Ultra-slim active harmonic filter also provides selectable priority functions for reactive power compensation, load balancing and harmonic filtering.

Connected in parallel with the power system, the CHITEK Ultra-slim AHF collects real time grid data via externally installed sampling current transformers (CT). Its built in DSP leverages a high speed intelligent FFT algorithm to compute the required compensation current and issue control commands to the power modules. The filter dynamically tunes the switching frequency for optimized performance, enabling the AHF to generate reverse phase equal magnitude compensation current to counteract harmonic currents. This suppresses harmonic distortion across each harmonic order and achieves total harmonic distortion (THD) below 5%, in compliance with the IEEE 519,IEEE 6100-36 standard.

Halved Losses

Halved Losses

  • At least 1 percentage point lower loss.
  • A 150 A / 100 kvar unit running 7×24 saves about 8,760 kWh a year, an outstanding return.
Longer Service Life

Longer Service Life

  • Module internal temperature up to 18 °C lower than IGBT models (200 A, 90% load).
  • MTBF improved by more than 50%.
Higher Temperature Tolerance

Higher Temperature Tolerance

  • No derating below 45 °C, 5 °C higher than standard models, for high-temperature industrial sites.
  • Keeps running below 65 °C even in extreme conditions.
Even-Order Harmonic Elimination

Even-Order Harmonic Elimination

  • 100% even-order harmonic filtering, where IGBT products are nearly ineffective.
All Components Upgraded

All Components Upgraded

  • Capacitors, reactors and relays upgraded together to higher-end designs.
Stricter Certification

Stricter Certification

  • Power and telecom industry standard test reports, salt spray test reports, CQC/CE certification.

Parameters

Module parameters
Rated Voltage208–690 V
Rated Capacity8 A – 20 A per module (parallel expandable, unlimited)
System parameters
Frequency50 / 60 Hz
Wiring Mode3P3W / 3P4W
Filtering Range2nd – 51st order harmonic
FunctionHarmonic mitigation, reactive compensation, imbalance phase balancing
Performance indicators
Full Response Time< 50 μs
Switching Frequencyup to 20 kHz (IGBT)
Efficiency≥ 97%
Power Loss< 3% of rated kVA
THDi (after compensation)< 5% (IEEE 519)
Topology3-level NPC, IGBT
Communications & monitoring
CommunicationMODBUS / optional Ethernet
Mechanical properties
IP ClassIP20, IP30, IP65 (customizable)
Dimensions600 × 500 × 220 mm (W × H × D)
InstallationWall mounted / floor stand cabinet
Related qualifications and standards
StandardIEC 61000 / IEC 62477

WHY CHITEK IP65 Active Harmonic Filter?

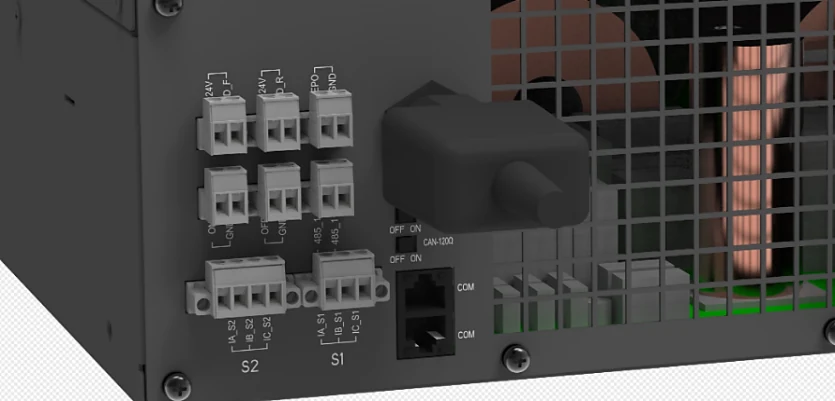

CT wiring terminals (S1/S2), RJ45 and CAN module-paralleling ports and communication DIP switches on the CHITEK Ultra-slim AHF module

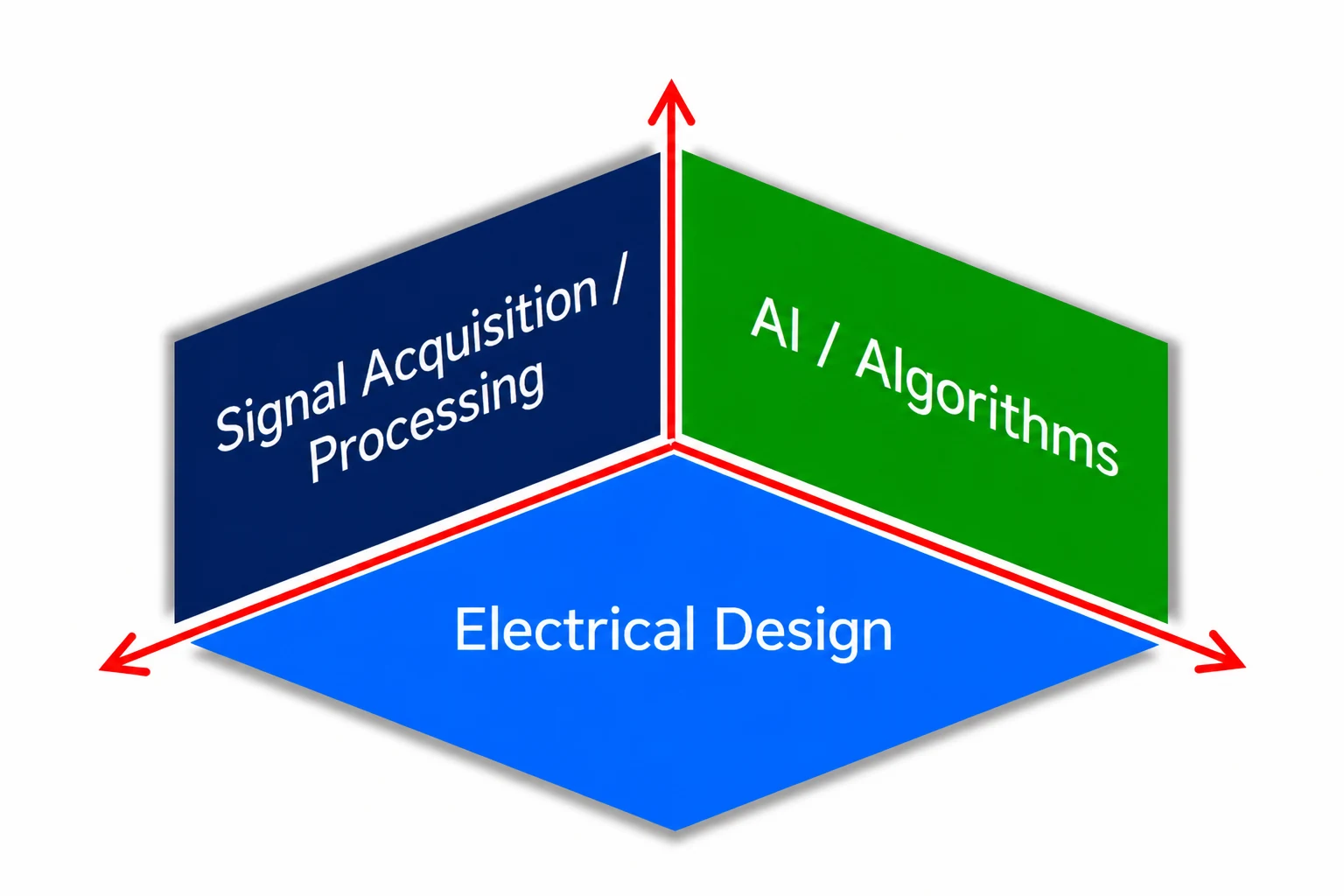

Tri-panel engineering diagram of the CHITEK Ultra-slim AHF control system: signal acquisition and processing, digital control algorithms, and electrical design

Easy to install and commission

Hardware

  • CT Wiring: Isolated S1/S2 terminals; error-proof CT terminal blocks (pre-fabricated cables included as standard). Flange-locking design prevents open circuits.
  • RJ45 ports for module paralleling and module-to-control panel connections. Ports integrate power, RS-485, and CAN communication. Pre-fabricated cables come as standard for plug-and-play, significantly reducing wiring time.

Software

Easy software operation, and simple hardware installation. Only power cables and a set of CT to set up IP65 Active Harmonic Filter. The Automatic fine-tuning function realizes intelligent and excellent compensation effects, bringing users a simple and efficient commissioning experience.

Potting Protection

Protects electronic circuits against contamination without compromising heat dissipation

Smart Sleep Mode

  • Load-based start/stop prevents prolonged operation under low-load conditions
  • Duty cycling for low-load modules
  • Enhanced energy efficiency and extended lifespan

Resonance suppression

  • Proprietary algorithm that detects line conditions and automatically adjusts parameters.
  • Compatible with a wide range of complex load types

Manufacturing & Quality Assurance Capabilities

The IP65 Active Harmonic Filter is built in our own 2,300 m² plant under an ISO 9001:2015 quality system — from incoming inspection to burn-in testing, every stage is completed and signed off under our own roof.

ISO 9001:2015 quality system

SGS-certified quality management governs design, procurement, production and final release — published parameters match actual shipped performance.

Complete in-house production line

Component procurement, SMT/DIP assembly, board FCT, IPQC, safety-compliance testing, ATE fixture test, potting and aging — all completed inside our own facility.

Every unit burn-in tested

A self-developed aging cabinet with module fixture testing (patent CN22268956U) runs each unit through full burn-in, followed by a post-aging final quality check.

Proven in the field

CHITEK filters are in service in more than 10 countries, with multilingual interfaces and factory technical support for overseas commissioning.

Certifications

EUTEST Attestation of Conformity TD11432302.R1 for the CHITEK Active Power Filter, covering EU Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU

CE — LVD & EMC (EUTEST, 2023)

TÜV SÜD Attestation of Conformity No. N8A 136516 0001 Rev. 00 for the CHITEK Active Power Filter, issued under EU Low Voltage Directive 2014/35/EU

LVD 2014/35/EU (TÜV SÜD, 2026)

EMC test report No. SET2022-01936 for the Active Power Filter, issued by CCIC Southern Testing Co., Ltd. (CNAS L1659 accredited laboratory)

EMC test report (CCIC-SET, 2022)

CE Attestation of Conformity No. SET2022-02884 for the Active Power Filter, issued by CCIC Southern Testing Co., Ltd. to EN 62477-1:2012+A11:2014 and EU Low Voltage Directive 2014/35/EU

CE / LVD 2014/35/EU (CCIC-SET, 2022)

Want a network that runs cooler, trips less often and stays inside specification? Send us your load details and our engineers will propose a configuration and quote it against your actual requirements — not a catalogue guess.

Request a Consultation

FAQs About the IP65 Active Harmonic Filter

Q1: What is an active harmonic filter (AHF)?

An active harmonic filter is a power-electronics device that measures the load current with an external CT, isolates the harmonic, reactive and imbalance components with a DSP, and injects an equal and opposite compensation current through an IGBT inverter bridge. The utility then sees a clean fundamental waveform.

Q2: How does the AHF work?

An external CT samples the load current; a DSP/FPGA runs an FFT to separate 2nd–51st order harmonics, reactive power and imbalance; the IGBT inverter bridge then injects an equal and opposite-phase compensation current. The result is THDi held below 5% per IEEE 519 at the point of common coupling.

Q3: What capacity and voltage range is available?

8 A – 20 A per module (parallel expandable, unlimited), 3P3W/3P4W, covering 208–690V. Modules parallel without a practical limit to reach 3000 A and beyond for large plants.

Q4: Can it also correct power factor and balance loads?

Yes. A selectable priority function covers harmonic mitigation, reactive compensation and three-phase balancing. In 3P4W mode it also cancels the accumulated 3rd-harmonic neutral current.

Q5: How is it installed and what protection rating does it have?

Installed as wall-mounted or rack / cabinet type; rated IP20, IP30, IP65 (customizable). The enclosure is built for the duty cycle of industrial switchrooms and can be customized for harsher or outdoor sites.

Q6: How do I confirm the right model for my site?

Send us the load’s harmonic spectrum, voltage class and installed nonlinear capacity. CHITEK supplies a selection matrix by voltage class, series and capacity, plus a sizing calculation on request.

Application of the IP65 Active Harmonic Filter

Data Center

40 MW Hyperscale Data Center — UPS Input Harmonics

Three 2.4 MW UPS modules running in parallel at a 40 MW hyperscale facility were circulating rectifier harmonics between units — unbalancing load sharing, thermally stressing the battery strings and triggering false PDU alarms. Six AHF-200A units went in at the UPS input with three SVG-150kvar units on the LV bus. Distortion at the UPS input fell from 14.0% to 2.8%, circulating current dropped by 80%, and the site recovered 2.6M CNY in annual energy cost.

THD 14.0% → 2.8% · circulating current down 80% · 2.6M CNY saved per year

China Active Harmonic Filter, SVG Static Var Generator Suppliers, Manufacturers, Factory - CHITEK

Industrial Manufacturing

12-inch Wafer Fab — Sub-Cycle Sag Protection

An immersion-lithography fab needs voltage sags held below 5 ms, yet utility faults 30 km away kept stripping scanner stage position — about three incidents a month, each scrapping roughly 25 wafers. Four dual-feed AHF+SVG units at the UPS front end and two SPC-100A units balancing the test floor brought sag duration back inside spec. Scanner halts stopped completely, wafer yield gained three percentage points, and payback landed under eight months.

Sag under 5 ms · zero scanner halts · wafer yield +3 points

China Active Harmonic Filter, SVG Static Var Generator Suppliers, Manufacturers, Factory - CHITEK

Commercial & Medical

2,000-Bed Hospital — Imaging & OR Power Quality

A 2,000-bed tertiary hospital with four 1,600 kVA transformers watched main-busbar THD climb past 18% after its imaging centre was expanded — enough to produce CT and MRI image artifacts and one power-quality incident in an operating theatre. Two AHF-200A units now cover the OR and imaging feeders, with one SVG-100A on HVAC reactive duty. THD settled at 4.1% under IEEE 519, transformer temperature fell 15°C and maintenance cost dropped 45%.

THD 18.3% → 4.1% · transformer down 15°C · maintenance cost −45%

China Active Harmonic Filter, SVG Static Var Generator Suppliers, Manufacturers, Factory - CHITEK
