CHITEK NEW ENERGYPOWER QUALITY PRODUCTS

Shenzhen CHITEK New Energy Technology Co., Ltd

PRODUCT INTRODUCTION 01-02
Focusing on low-carbon
transmission and distribution,
empowering digital energy
BUILDING A HIGH ENERGY
EFFICIENCY GREEN FUTURE
PRODUCT INTRODUCTION 03-04

APF/SVGIndustrial Model

High-end SiC model – Gen2

Reduced Power Loss
Power loss reduced by at least 1 percentage point
Energy-saving payback is often under one year
Longer Service Life
Internal temperature is 8℃ lower than IGBT models
Fault-free operating time improved by over 50%
Higher Temperature Tolerance
No derating below 45℃
No shutdown below 65℃
Even Harmonics
100% elimination of even harmonics
Filters both odd and even harmonics
simultaneously
Rigorous Certifications
Power and telecom industry standard test reports
Salt spray test report
CQC certified / CE certified

CONTENTS

  • 05 Ultra-slimModel
  • 07 DistributedModels
  • 09 Anti-pollutionStandard Model
  • 11 High EfficiencyAnti-pollution SiC Models
  • 13 208V Anti-pollutionStandard Model
  • 15 480V Anti-pollutionStandard Model
  • 17 800V/ 690VModels
  • 19 Three-phase UnbalanceRegulator (SPC)
  • 21 Power Quality Monitoring andCapacitor Control Unit
  • 22 Product SelectionChart
PRODUCT INTRODUCTION 05-06

APF/SVG ULTRA SLIM MODEL

  • Independent button design for simpler operation;
  • Minimal internal cabling and optimized airflow for better heat dissipation, operating temperature up to 55℃;
  • PWM speed-controlled fan with intelligent AI algorithm, higher efficiency at light load while extending fan service life;

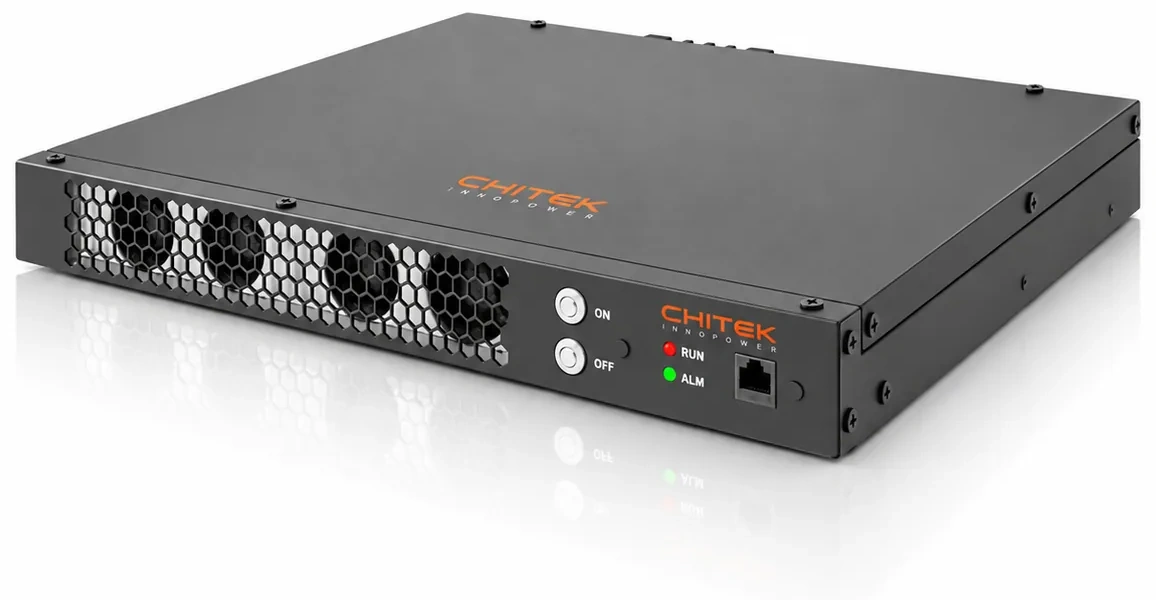

APF/SVG ULTRA SLIM MODEL — rack-mounted unit
Rack-mounted
345 366.5 415 20
Specifications
Module Parameters
Rated Voltage400VAC (208V, 480V please contact us)
Rated Current
APF 8AAPF 15AAPF 20A
Rated Capacity
SVG 5KvarSVG 10KvarSVG 14Kvar
System Parameters
Rated Input Voltage400VAC (-20%~+15%)
Grid Frequency50Hz (Range: 47Hz~53Hz), 60Hz (Range: 57Hz~63Hz)
Parallel Connections Limit1 unit
EfficiencyUp to 97.5%
Grid StructureThree-phase four-wire or three-phase three-wire
Current Transformer50/5~10,000/5
Performance Indicators
Harmonic Compensation Range2nd~50th order
Harmonic Attenuation>95% (rated load)
Quick Response Time< 50μs
Full Response Time< 5ms
Target Power Factor-1~+1, continuously adjustable (capacitive / inductive)
Compensation ModeHarmonic suppression / Reactive power compensation / Unbalance compensation, 11 modes freely combinable
Noise Indicator<60dB
Communications & Monitoring
Communication InterfaceRS485, WiFi, 4G, CAN
Communication ProtocolModbus (RTU or TCP/IP)
Module Display InterfaceMechanical buttons, LED indicators, independent touchscreen, local WiFi interface
Mechanical Properties
Mounting OptionsRack-mounted / Wall-mounted
Dimensions W×D×H (mm)340x410x45
Net Weight7.5kg
Chassis Height
ColorIndustrial black (RAL7021), custom colors available on request
CT Connection ModeSource side / Load side supported
Environmental Requirements
Altitude≤1500m; 1500m~4000m: derate 1% per 100m per GB/T3859.2
Operating Temperature-40℃~+65℃
Relative Humidity5%~95%, non-condensing
Protection LevelIP20, other IP ratings customizable
Related Qualifications and Standards
Standards ComplianceIEC61000-3-6, IEC61000-6-4, ER G5/4, EN 62477-1
CertificationCE, CQC
PRODUCT INTRODUCTION 07-08

APF/SVG DISTRIBUTED MODEL

  • Independent button design for simpler operation;
  • Minimal internal cabling and optimized airflow for better heat dissipation, operating temperature up to 55℃;
  • PWM speed-controlled fan with intelligent AI algorithm, higher efficiency at light load while extending fan service life;

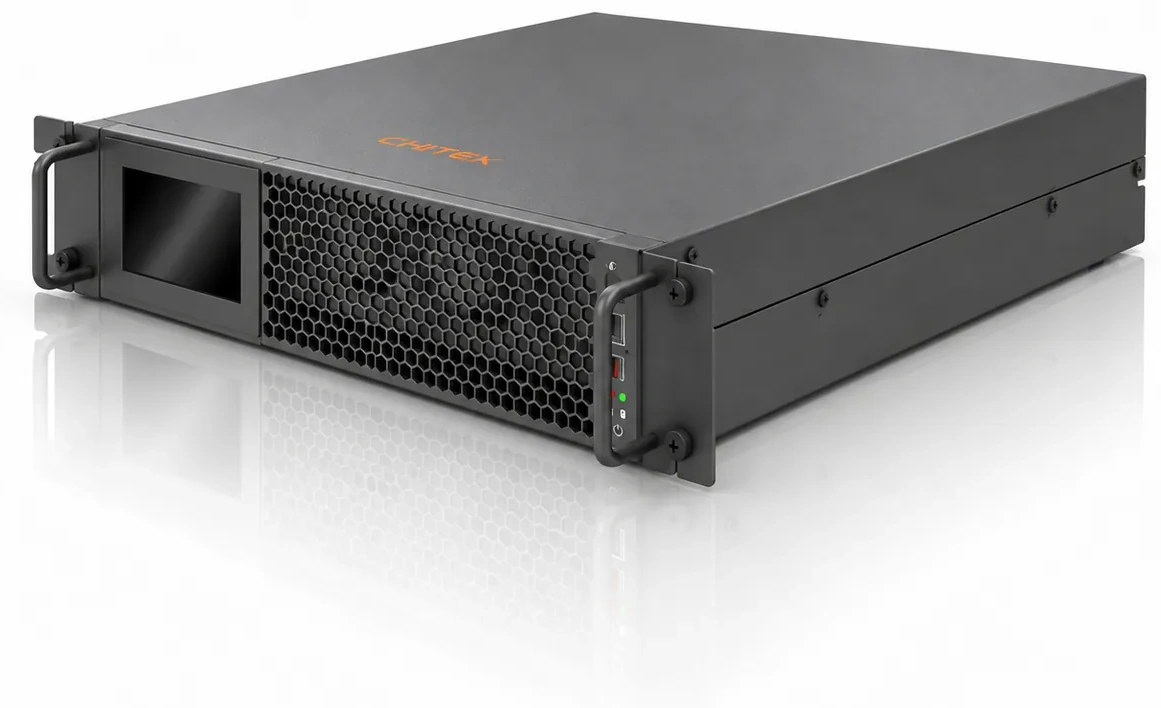

APF/SVG DISTRIBUTED MODEL — rack-mounted unit
Rack-mounted
345 366.5 415 20
Specifications
Module Parameters
Rated Voltage400VAC (208V, 480V please contact us)
Rated Current
APF 30AAPF 50A
Rated Capacity
SVG 20KvarSVG 30Kvar
System Parameters
Rated Input Voltage400VAC (-20%~+15%)
Grid Frequency50Hz (Range: 47Hz~53Hz), 60Hz (Range: 57Hz~63Hz)
Parallel Connections Limit≤8 units
EfficiencyUp to 97.5%
Grid StructureThree-phase four-wire or three-phase three-wire
Current Transformer50/5~10,000/5
Performance Indicators
Harmonic Compensation Range2nd~50th order
Harmonic Attenuation>95% (rated load)
Quick Response Time< 50μs
Full Response Time< 5ms
Target Power Factor-1~+1, continuously adjustable (capacitive / inductive)
Compensation ModeHarmonic suppression / Reactive power compensation / Unbalance compensation, 11 modes freely combinable
Noise Indicator<60dB
Communications & Monitoring
Communication InterfaceRS485, WiFi, 4G, CAN
Communication ProtocolModbus (RTU or TCP/IP)
Module Display Interface4.3-inch touchscreen, 2.5-inch button screen, LED indicators, independent touchscreen
Mechanical Properties
Mounting OptionsRack-mounted / Hot-swappable
Dimensions W×D×H (mm)380x400x88
Net Weight11.5kg
Chassis Height2U
ColorIndustrial gray (RAL7035), custom colors available on request
CT Connection ModeSource side / Load side supported
Environmental Requirements
Altitude≤1500m; 1500m~4000m: derate 1% per 100m per GB/T3859.2
Operating Temperature-40℃~+65℃
Relative Humidity5%~95%, non-condensing
Protection LevelIP20, other IP ratings customizable
Related Qualifications and Standards
Standards ComplianceIEC61000-3-6, IEC61000-6-4, ER G5/4, EN 62477-1
CertificationCE, CQC
PRODUCT INTRODUCTION 09-10

APF/SVG STANDARD ANTI-POLLUTION MODEL

  • Independent button design for simpler operation;
  • Minimal internal cabling and optimized airflow for better heat dissipation, operating temperature up to 55℃;
  • PWM speed-controlled fan with intelligent AI algorithm, higher efficiency at light load while extending fan service life;

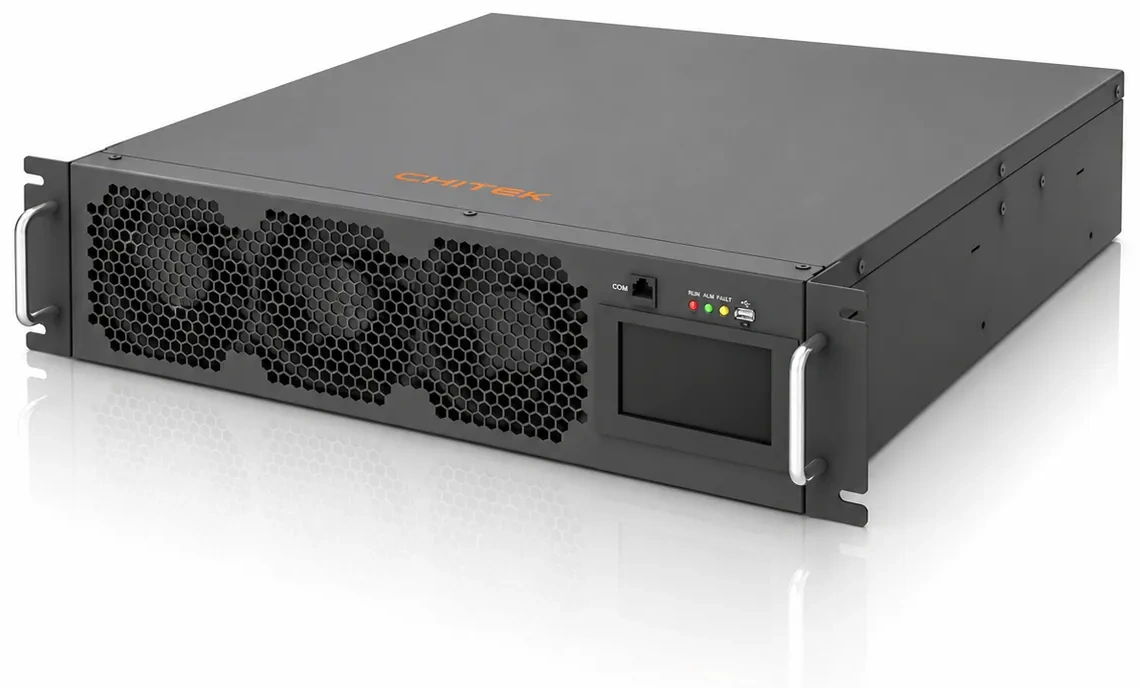

APF/SVG STANDARD ANTI-POLLUTION MODEL — rack-mounted unit
Rack-mounted
345 366.5 415 20
Specifications
Module Parameters
Rated Voltage400VAC
Rated Current
APF 50AAPF 75AAPF 100AAPF 150AAPF 200A
Rated Capacity
SVG 35KvarSVG 50KvarSVG 75KvarSVG 100KvarSVG 150Kvar
System Parameters
Rated Input Voltage400VAC (-20%~+15%)
Grid Frequency50Hz (Range: 47Hz~53Hz), 60Hz (Range: 57Hz~63Hz)
Parallel Connections Limit16 units
EfficiencyUp to 98%
Grid StructureThree-phase four-wire or three-phase three-wire
Current Transformer50/5~30000/5
Performance Indicators
Harmonic Compensation Range2nd~50th order
Harmonic Attenuation>95% (rated load)
Quick Response Time< 50μs
Full Response Time< 5ms
Target Power Factor-1~+1, continuously adjustable (capacitive / inductive)
Compensation ModeHarmonic suppression / Reactive power compensation / Unbalance compensation, 11 modes freely combinable
Noise Indicator<60dB
Communications & Monitoring
Communication InterfaceRS485, WiFi, 4G, CAN
Communication ProtocolModbus (RTU or TCP/IP)
Module Display Interface4.3-inch touchscreen, LED indicators, independent touchscreen
Mechanical Properties
Mounting OptionsWall-mounted / DIN-rail mounted
Dimensions W×D×H (mm)500x550x130
Net Weight
19kg24kg29kg34kg
ColorIndustrial black (RAL7021), custom colors available on request
CT Connection ModeSource side / Load side supported
Environmental Requirements
Altitude≤1500m; 1500m~4000m: derate 1% per 100m per GB/T3859.2
Operating Temperature-40℃~+65℃
Relative Humidity5%~95%, non-condensing
Protection LevelIP20, other IP ratings customizable
Related Qualifications and Standards
Standards ComplianceIEC61000-3-6, IEC61000-6-4, ER G5/4, EN 62477-1
CertificationCE, CQC
PRODUCT INTRODUCTION 11-12

APF/SVG SECOND-GENERATION SILICON CARBIDE MODEL

  • Independent button design for simpler operation;
  • Minimal internal cabling and optimized airflow for better heat dissipation, operating temperature up to 55℃;
  • PWM speed-controlled fan with intelligent AI algorithm, higher efficiency at light load while extending fan service life;

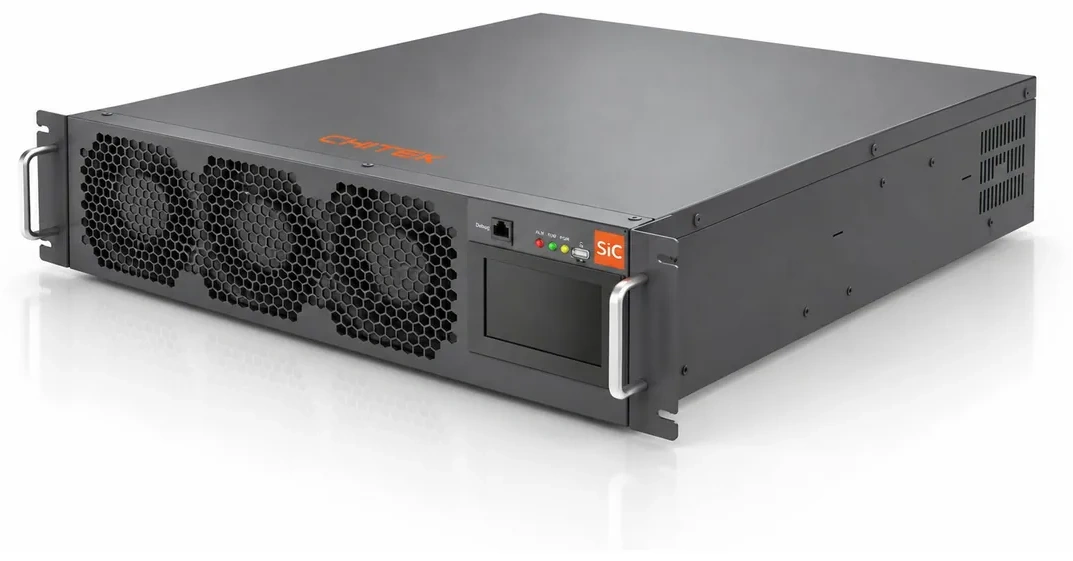

APF/SVG SECOND-GENERATION SILICON CARBIDE MODEL — rack-mounted unit
Rack-mounted
345 366.5 415 20
Specifications
Module Parameters
Rated Voltage400VAC (208V, 480V please contact us)
Rated Current
APF 50AAPF 75AAPF 100AAPF 150AAPF 200A
Rated Capacity
SVG 35KvarSVG 50KvarSVG 75KvarSVG 100KvarSVG 150Kvar
System Parameters
Rated Input Voltage400VAC (-20%~+15%)
Grid Frequency50Hz (Range: 47Hz~53Hz), 60Hz (Range: 57Hz~63Hz)
Parallel Connections Limit≤16 units
EfficiencyUp to 99%
Grid StructureThree-phase four-wire or three-phase three-wire
Current Transformer50/5~30000/5
Performance Indicators
Harmonic Compensation Range2nd~50th order
Harmonic Attenuation>95% (rated load)
Quick Response Time< 25μs
Full Response Time< 5ms
Target Power Factor-1~+1, continuously adjustable (capacitive / inductive)
Compensation ModeHarmonic suppression / Reactive power compensation / Unbalance compensation, 11 modes freely combinable
Noise Indicator<60dB
Communications & Monitoring
Communication InterfaceRS485, WiFi, 4G, CAN
Communication ProtocolModbus (RTU or TCP/IP)
Module Display Interface4.3-inch touchscreen, LED indicators, independent touchscreen
Mechanical Properties
Mounting OptionsWall-mounted / DIN-rail mounted
Dimensions W×D×H (mm)
500x550x130500x550x175
Net Weight
19kg24kg29kg34kg
ColorIndustrial black (RAL7021), custom colors available on request
CT Connection ModeSource side / Load side supported
Environmental Requirements
Altitude≤1500m; 1500m~4000m: derate 1% per 100m per GB/T3859.2
Operating Temperature-40℃~+65℃
Relative Humidity5%~95%, non-condensing
Protection LevelIP20, other IP ratings customizable
Related Qualifications and Standards
Standards ComplianceIEC61000-3-6, IEC61000-6-4, ER G5/4, EN 62477-1
CertificationType test report, CE certification, CQC certification, salt spray test report
PRODUCT INTRODUCTION 13-14

APF/SVG 208V STANDARD ANTI-POLLUTION MODEL

  • Independent button design for simpler operation;
  • Minimal internal cabling and optimized airflow for better heat dissipation, operating temperature up to 55℃;
  • PWM speed-controlled fan with intelligent AI algorithm, higher efficiency at light load while extending fan service life;
APF/SVG 208V STANDARD ANTI-POLLUTION MODEL — rack-mounted unit
Rack-mounted
345 366.5 415 20
Specifications
Module Parameters
Rated Voltage208VAC
Rated Current
APF 50AAPF 75AAPF 100AAPF 150AAPF 200A
Rated Capacity
SVG 18KvarSVG 27KvarSVG 38KvarSVG 54KvarSVG 75Kvar
System Parameters
Rated Input Voltage208VAC (-20%~+15%)
Grid Frequency50Hz (Range: 47Hz~53Hz), 60Hz (Range: 57Hz~63Hz)
Parallel Connections Limit16 units
EfficiencyUp to 98%
Grid StructureThree-phase four-wire or three-phase three-wire
Current Transformer50/5~30000/5
Performance Indicators
Harmonic Compensation Range2nd~50th order
Harmonic Attenuation>95% (rated load)
Quick Response Time< 50μs
Full Response Time< 5ms
Target Power Factor-1~+1, continuously adjustable (capacitive / inductive)
Compensation ModeHarmonic suppression / Reactive power compensation / Unbalance compensation, 11 modes freely combinable
Noise Indicator<60dB
Communications & Monitoring
Communication InterfaceRS485, WiFi, 4G, CAN
Communication ProtocolModbus (RTU or TCP/IP)
Module Display Interface4.3-inch touchscreen, LED indicators, independent touchscreen
Mechanical Properties
Mounting OptionsWall-mounted / DIN-rail mounted
Dimensions W×D×H (mm)500x550x130
Net Weight
19kg24kg29kg34kg
ColorIndustrial black (RAL7021), custom colors available on request
CT Connection ModeSource side / Load side supported
Environmental Requirements
Altitude≤1500m; 1500m~4000m: derate 1% per 100m per GB/T3859.2
Operating Temperature-40℃~+65℃
Relative Humidity5%~95%, non-condensing
Protection LevelIP20, other IP ratings customizable
Related Qualifications and Standards
Standards ComplianceIEC61000-3-6, IEC61000-6-4, ER G5/4, EN 62477-1
CertificationCE, CQC
PRODUCT INTRODUCTION 15-16

APF/SVG 480V STANDARD ANTI-POLLUTION MODEL

  • Independent button design for simpler operation;
  • Minimal internal cabling and optimized airflow for better heat dissipation, operating temperature up to 55℃;
  • PWM speed-controlled fan with intelligent AI algorithm, higher efficiency at light load while extending fan service life;
APF/SVG 480V STANDARD ANTI-POLLUTION MODEL — rack-mounted unit
Rack-mounted
345 366.5 415 20
Specifications
Module Parameters
Rated Voltage480VAC
Rated Current
APF 50AAPF 75AAPF 100AAPF 150AAPF 200A
Rated Capacity
SVG 40KvarSVG 60KvarSVG 90KvarSVG 120KvarSVG 180Kvar
System Parameters
Rated Input Voltage480VAC (-20%~+15%)
Grid Frequency50Hz (Range: 47Hz~53Hz), 60Hz (Range: 57Hz~63Hz)
Parallel Connections Limit16 units
EfficiencyUp to 98%
Grid StructureThree-phase three-wire
Current Transformer50/5~30000/5
Performance Indicators
Harmonic Compensation Range2nd~50th order
Harmonic Attenuation>95% (rated load)
Quick Response Time< 50μs
Full Response Time< 5ms
Target Power Factor-1~+1, continuously adjustable (capacitive / inductive)
Compensation ModeHarmonic suppression / Reactive power compensation / Unbalance compensation, 11 modes freely combinable
Noise Indicator<60dB
Communications & Monitoring
Communication InterfaceRS485, WiFi, 4G, CAN
Communication ProtocolModbus (RTU or TCP/IP)
Module Display Interface4.3-inch touchscreen, LED indicators, independent touchscreen
Mechanical Properties
Mounting OptionsWall-mounted / DIN-rail mounted
Dimensions W×D×H (mm)500x550x130
Net Weight
19kg24kg29kg34kg
ColorIndustrial black (RAL7021), custom colors available on request
CT Connection ModeSource side / Load side supported
Environmental Requirements
Altitude≤1500m; 1500m~4000m: derate 1% per 100m per GB/T3859.2
Operating Temperature-40℃~+65℃
Relative Humidity5%~95%, non-condensing
Protection LevelIP20, other IP ratings customizable
Related Qualifications and Standards
Standards ComplianceIEC61000-3-6, IEC61000-6-4, ER G5/4, EN 62477-1
CertificationCE, CQC
PRODUCT INTRODUCTION 17-18

APF/SVG 800V/690V STANDARD MODEL

  • Independent button design for simpler operation;
  • Minimal internal cabling and optimized airflow for better heat dissipation, operating temperature up to 55℃;
  • PWM speed-controlled fan with intelligent AI algorithm, higher efficiency at light load while extending fan service life;

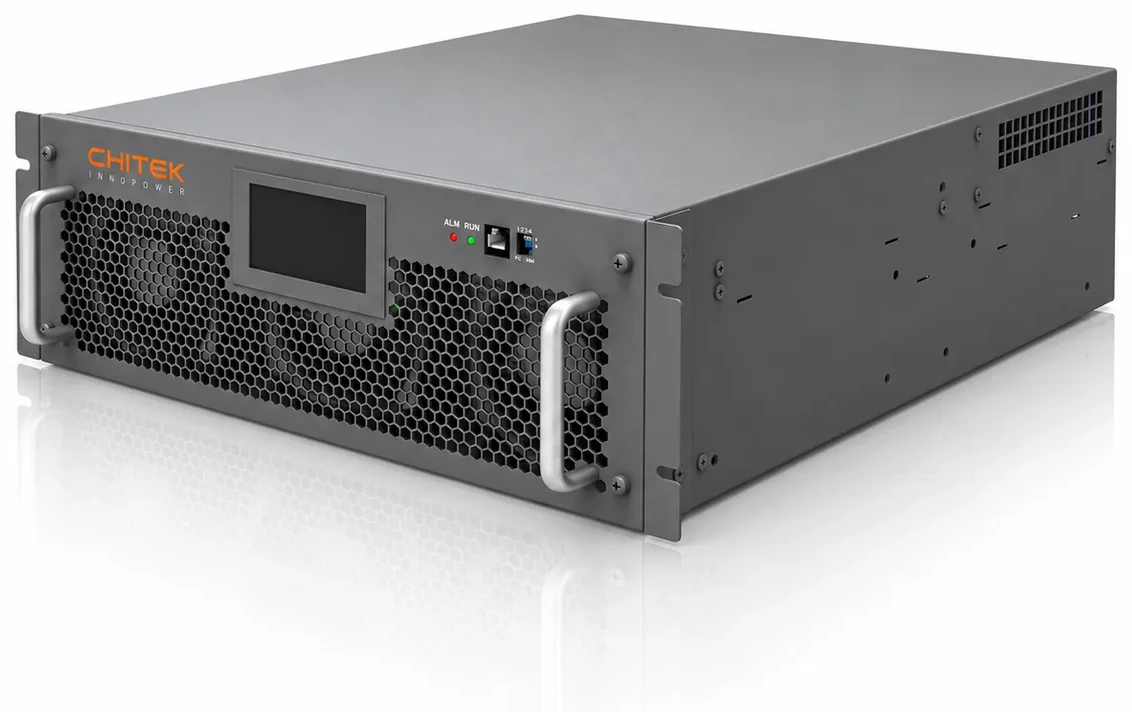

APF/SVG 800V/690V STANDARD MODEL — rack-mounted unit
Rack-mounted
345 366.5 415 20
Specifications
Module Parameters
Rated Voltage
800VAC690VAC
Rated Current
APF 85AAPF 100A
Rated Capacity
SVG 120KvarSVG 120Kvar
System Parameters
Rated Input Voltage800/690VAC (-20%~+10%)
Grid Frequency50Hz (Range: 47Hz~53Hz), 60Hz (Range: 57Hz~63Hz)
Parallel Connections Limit≤16 units
EfficiencyUp to 98%
Grid StructureThree-phase three-wire
Current Transformer150/5~30,000/5
Performance Indicators
Harmonic Compensation Range2nd~50th order
Harmonic Attenuation>95% (rated load)
Quick Response Time< 50μs
Full Response Time< 5ms
Target Power Factor-1~+1, continuously adjustable (capacitive / inductive)
Compensation ModeHarmonic suppression / Reactive power compensation / Unbalance compensation, 11 modes freely combinable
Noise Indicator<60dB
Communications & Monitoring
Communication InterfaceRS485, WiFi, 4G, CAN
Communication ProtocolModbus (RTU or TCP/IP)
Module Display Interface4.3-inch touchscreen, LED indicators, independent touchscreen
Mechanical Properties
Mounting OptionsWall-mounted / DIN-rail mounted
Dimensions W×D×H (mm)480x600x175
Net Weight
40kg
ColorIndustrial black (RAL7021), custom colors available on request
CT Connection ModeSource side / Load side supported
Environmental Requirements
Altitude≤1500m; 1500m~4000m: derate 1% per 100m per GB/T3859.2
Operating Temperature-40℃~+65℃
Relative Humidity5%~95%, non-condensing
Protection LevelIP20, other IP ratings customizable
Related Qualifications and Standards
Standards ComplianceIEC61000-3-6, IEC61000-6-4, ER G5/4, EN 62477-1
CertificationCE, CQC
PRODUCT INTRODUCTION 19-20

APF/SVG NATURAL AIRCOOLING MODEL

  • Independent button design for simpler operation;
  • Minimal internal cabling and optimized airflow for better heat dissipation, operating temperature up to 55℃;
  • PWM speed-controlled fan with intelligent AI algorithm, higher efficiency at light load while extending fan service life;

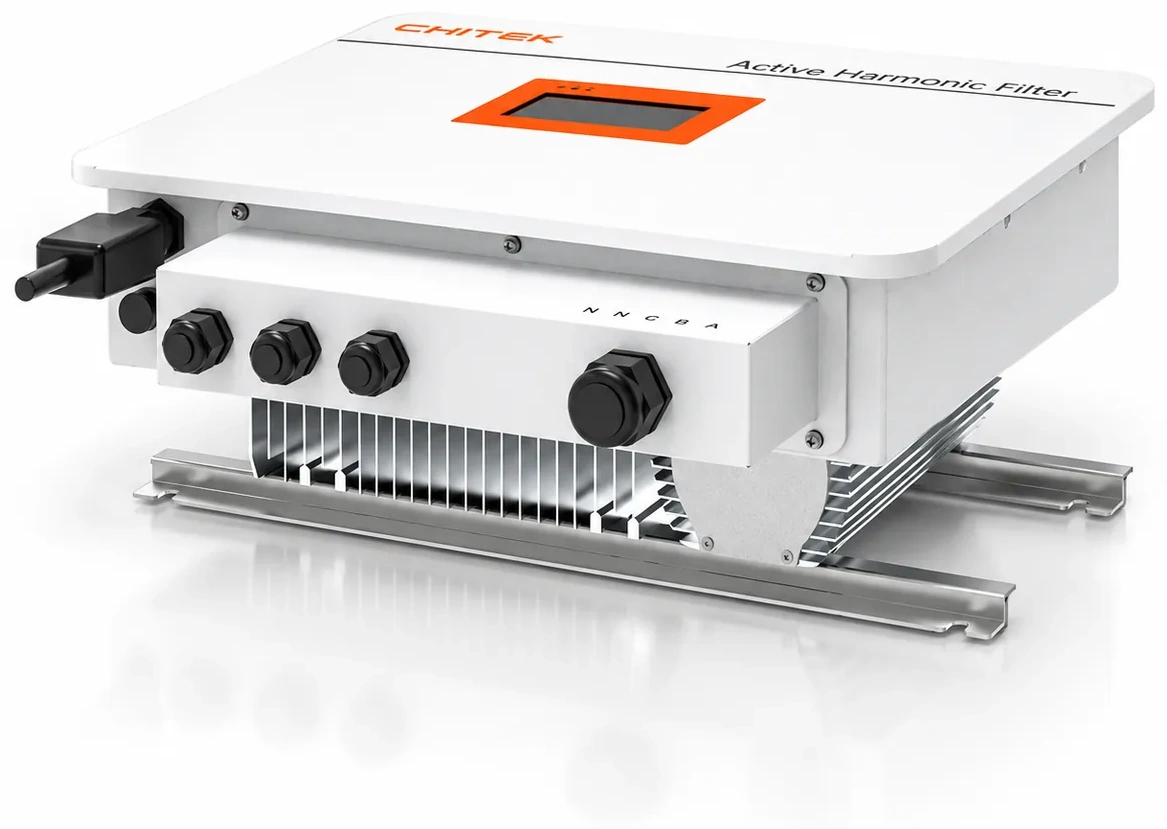

APF/SVG NATURAL AIRCOOLING MODEL — IP65 wall-mounted unit
Rack-mounted
345 366.5 415 20
Specifications
Module Parameters
Rated Voltage400VAC (208V, 480V please contact us)
Rated Current
APF 30AAPF 50A
Rated Capacity
SVG 20KvarSVG 35Kvar
System Parameters
Rated Input Voltage400VAC (-20%~+15%)
Grid Frequency50Hz (Range: 47Hz~53Hz), 60Hz (Range: 57Hz~63Hz)
Parallel Connections Limit≤16 units
EfficiencyUp to 99%
Grid StructureThree-phase four-wire or three-phase three-wire
Current Transformer50/5~10,000/5
Performance Indicators
Harmonic Compensation Range2nd~50th order
Harmonic Attenuation>95% (rated load)
Quick Response Time< 25μs
Full Response Time< 5ms
Target Power Factor-1~+1, continuously adjustable (capacitive / inductive)
Compensation ModeHarmonic suppression / Reactive power compensation / Unbalance compensation, 11 modes freely combinable
Noise Indicator<40dB
Communications & Monitoring
Communication InterfaceRS485, WiFi, 4G, CAN
Communication ProtocolModbus (RTU or TCP/IP)
Module Display InterfaceLED indicators, independent touchscreen, local WiFi interface
Mechanical Properties
Mounting OptionsWall-mounted
Dimensions W×D×H (mm)515x500x185
Net Weight
18kg
ColorIndustrial gray (RAL7035), custom colors available on request
CT Connection ModeSource side / Load side supported
Environmental Requirements
Altitude≤1500m; 1500m~4000m: derate 1% per 100m per GB/T3859.2
Operating Temperature-40℃~+55℃
Relative Humidity5%~95%, non-condensing
Protection LevelIP65
Related Qualifications and Standards
Standards ComplianceIEC61000-3-6, IEC61000-6-4, ER G5/4, EN 62477-1
CertificationCE, CQC
PRODUCT INTRODUCTION 21-22

POWER QUALITY
MONITORING UNIT
AND HMI

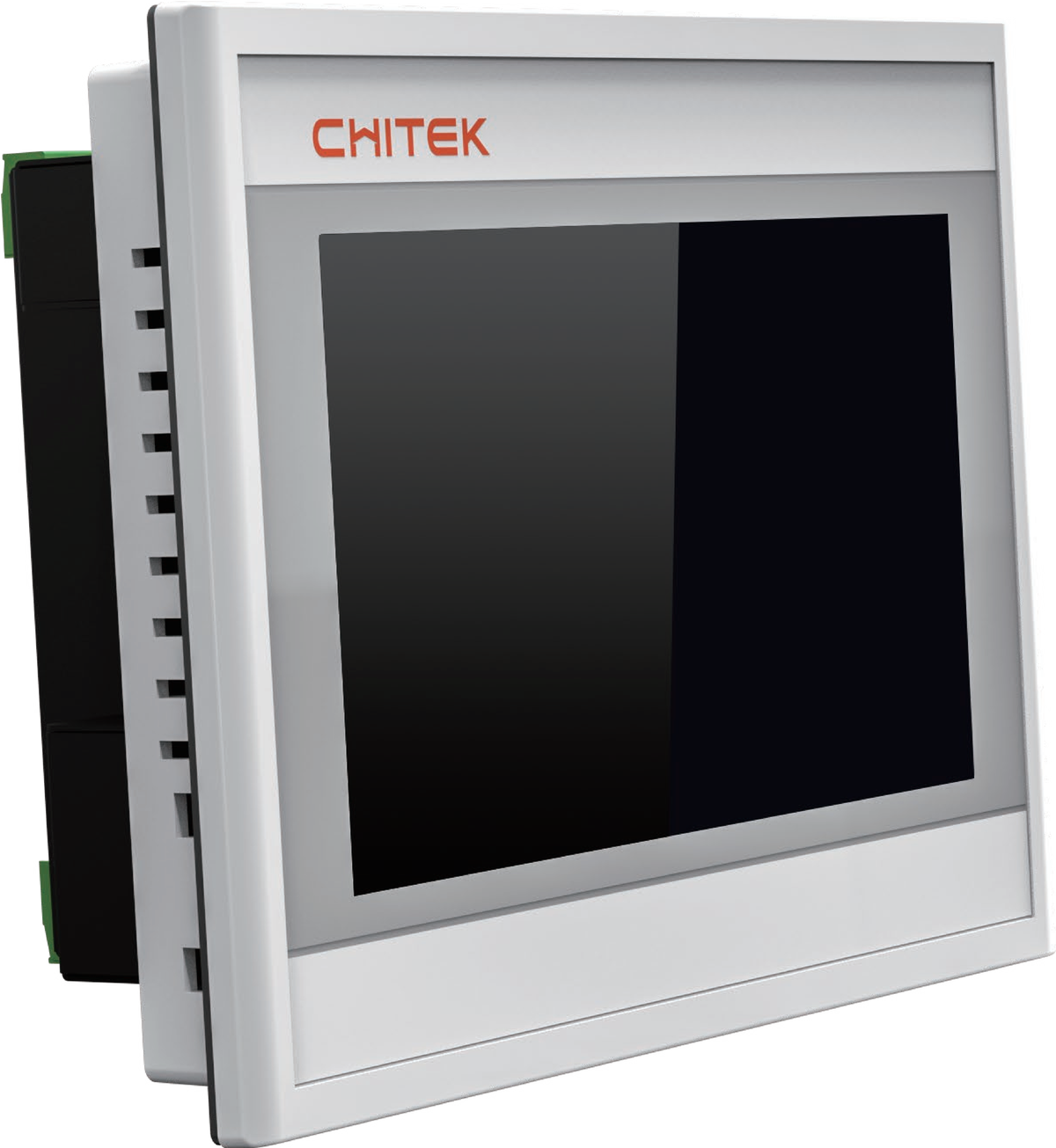

Power quality monitoring unit and HMI
7" / 10" / 4.3" monitoring unit parameters
Display interface
Resistive color touch LCD
  • Measurements: parameters, waveforms, spectra
  • Event logging: up to 1000 pieces of data can be logged
  • Function setting: system setting, compensation function setting …
  • Multi-language: Simplified Chinese, English, Polish …
(Electrical) contact
2 output dry contacts2 input dry contacts
Number of controllable modules
7" / 10" screen: control up to 16 modules 4.3" screen: control up to 1 module
Communication method Serial communication, ethernet communication, 4g/Wifi communication
Communication protocols Modbusrtu、 modbus tcp/ip
Shape and mounting dimensions See instruction manual
Capacitor bank controller (7" monitor built-in or stand-alone
type) parameters
(Electrical) contact 32 dry contact, control up to 32 sets of capacitor banks
Communication method Serial communication, ethernet communication, 4g/Wifi communication
Communication protocols Modbusrtu、 modbus tcp/ip
Shape and mounting dimensions See instruction manual

APF/SVG SELECTION TABLE

Model naming rules
M A F 100 3 4 R C
C: no screen， L: LCD
R: rail mounted; W: wall mounted; F: full cabinet; P: plug-in
3: three-phase three-wire system; 4: three-phase four-wire system
Voltage Rating: 2: 208V, 3: 400V, 4: 480V, 6: 690V, 8: 800V
Current/Power Capacity: 15-200A or 10-150Kvar
F: APF, G: SVG, A: ASVG, C: SPC
A: Anti-pollution type C: Silicon carbide type D: Distributed type L: Standardtype U: Ultra-slim type
H: High performance N: Natural convection R: dust & water Resistant M: Chitek Series
For Example

MAF10034RC,
indicating
Anti-pollution
type APF100A,
voltage class
400V,
three-phase
four-wire system,
rail mounting,
without screen

ABOUT ASVG – ENHANCED STATIC
VARIABLE GENERATOR

ASVG Product Features:
  • Supports up to 13 order harmonic compensation (3, 5, 7, 9, 11, 13)
  • User can set capacity split between PF correction and harmonic compensation
